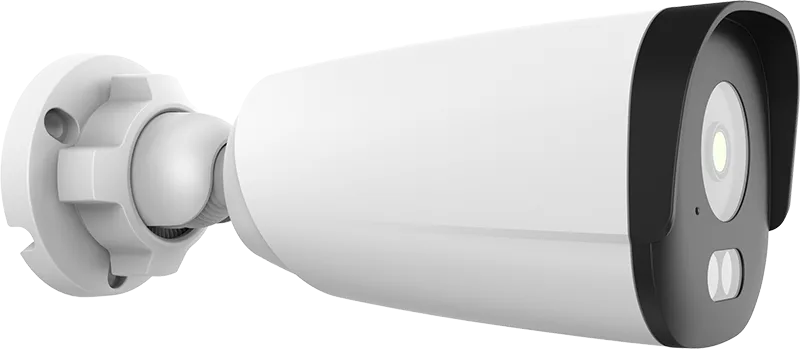

KC-2A1B2FI-M 2MP Fixed IR Bullet Camera
Feature
•Metal+plastic housing
•Up to 2MP,1920×1080@30fps
•S+265/H.265/H.264B/H.264M/H.264H
•Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR
•IR range up to 50m
•Built-in Mic
•Operating conditions -30℃~60℃(-22℉~140℉), ≤95%RH
•PoE:IEEE 802.3af,Max. 7W
•IP67
| Cameras | |
| Image Sensor | 1/2.8″CMOS |
| Min. Illumination | Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | Auto(ICR) |
| Smart IR | yes |
| WDR | DWDR |
| S/N | >39dB |
| Angle Adjustment | 0~360°(P); 0~80°(T); 0~360°(R) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F2.0 |
| Aperture Type | Fixed |
| Field of View | 99.7°(H); 55.1°(V); 113.9°(D) |
| DORI Distance | Detect : 38.6 m Observe : 15.3 m Recognize : 7.7 m Identify : 3.8 m |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | up to 50m |
| Wavelength | 850nm |
| White LEDs | x |
| Whitelight Distance | x |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~6Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D |
| Audio Sampling Rate | 8kHz/32kHz/48kHz |
| Image | |
| Max. Resolution | 2MP,1920×1080@30fps |
| Main Stream | PAL:25fps(1920×1080, 1280×720, 640×480, 704×576) NTSC:30fps(1920×1080, 1280×720, 640×480, 704×480) |
| Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
| Third Stream | x |
| BLC | yes |
| HLC | yes |
| AGC | yes |
| 3D DNR | yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| Region of Interest (RoI) | x |
| Corridor Mode | x |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters; 16*16/32*32/48*48; Lattice 16*16/32*32/48*48 |
| Picture Overlay | x |
| Privacy Mask | 4 black static areas |
| Defog | yes |
| Feature | |
| Alarm Event | モーション 検出; マスキングアラーム; IPアドレス 競合 |
| Alarm Linkage | Trigger Capture; Alarm Output |
| Video Analytics | Tripwire; Intrusion |
| Rules of Behavior Analyse In 1 Scene | 2 |
| Auto Early Warning(AEW) | x |
| Face Mode | x |
| Face Detection Performance | x |
| Network | |
| ANR | x |
| Protocols | HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; TLS v1.2; QoS; IPv4; SSH;Unicast; FTP |
| Interoperability | P2P(Mutually exclusive with Profile G); ONVIF(Profile S/T) ; SDK; CGI; RTSP |
| Remote Connection | ≤2 |
| Client | SVMP |
| Moblie Client | Secure Vision Pro |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| インターフェース | |
| Communication Interface | 1*RJ-45 (10/100 Base-T) |
| Built-in Mic | yes |
| Reset Button | x |
| On-board Storage | x |
| RTC | x |
| Audio I/O | x |
| Alarm I/O | x |
| Other Interface | x |
| Built-in Speaker | x |
| General | |
| Web Client Language | English |
| Operating Temperature | -30℃~60℃(-22℉~140℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -30℃~60℃(-22℉~140℉) |
| Storage Humidity | 10%~95%RH |
| Power Supply | PoE:IEEE 802.3af,Max. 7W |
| Protection | IP67 |
| Boundary Dimensions | 207(L)82(W)81(H)mm |
| Package Dimensions | 215(L)95(W)120(H)mm |
| GrossWeight | 0.47kg |
| Accessary | TC-P54BM Spec:V5/V3.0（KA-J54BM-V5） |
| Accessary | A36_V6.0 （KA-PM36） |
